Datasheet

PDM-14-2K-InGaAs
Download Datasheet:
PDM-14-2K-InGaAs.pdf
Photodiode module designed for optical measurement and communication.

Key features:
Material InGaAs
Optical Fiber SM or MM (50 or 62.5 µm)

Optical and electrical characteristics:
Parameter Symbol Test condition Min. Typ. Max. Unit
Wavelength Range λr 1000 1600 nm
Responsivity SPD 0.7 0.9 1.1 A/W
PD Dark Current Id Vrd=5V 0.05 µA
Capacitance CPD 5 10 pF
PD Operating Voltage Vrd 4.5 5 5.5 V

Packaging:

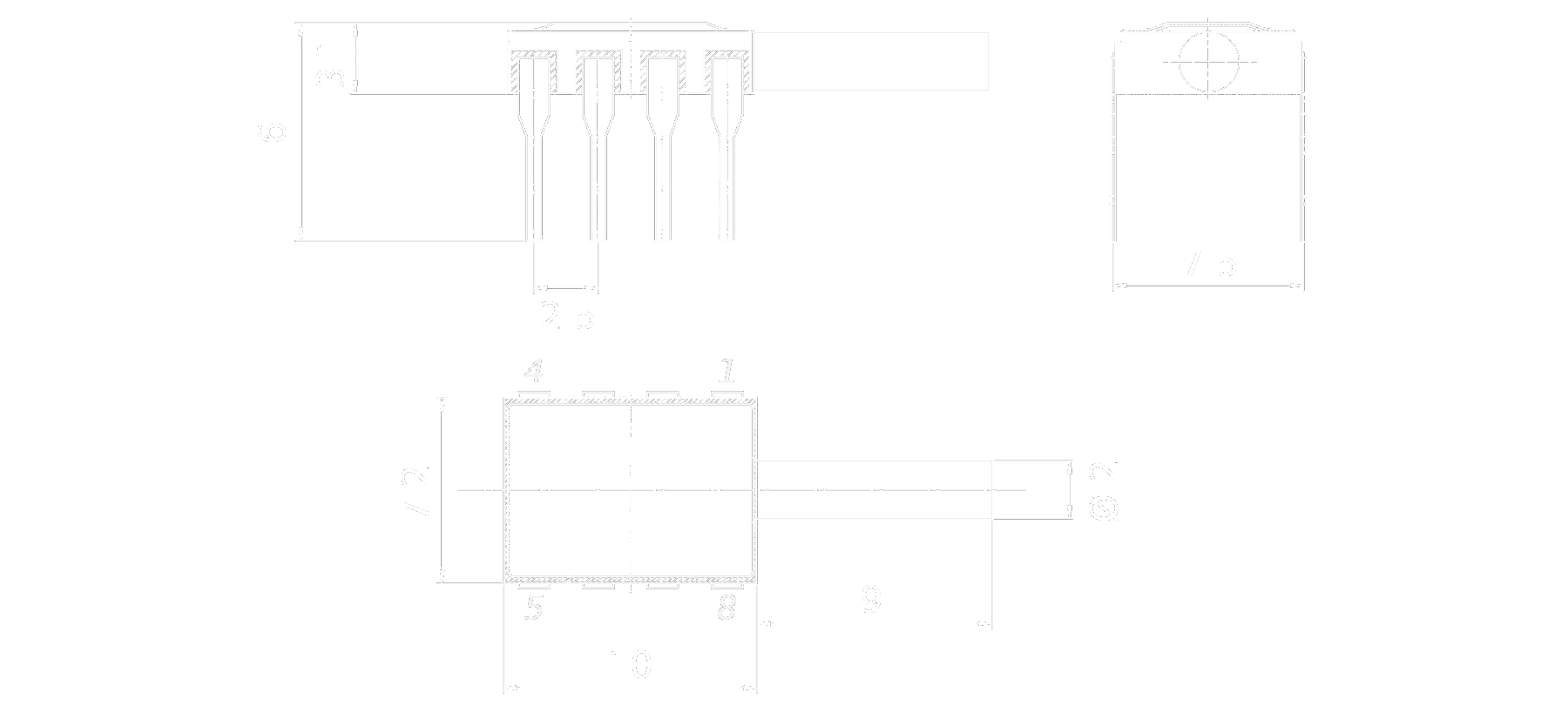

DIP8 PD:
№ Parameter № Parameter
1 NC 5 NC
2 PD cathode + 6 PD anode -
3 PD cathode + 7 NC
4 NC 8 NC
