Datasheet

TLD-808-14BF
Download Datasheet:
TLD-808-14BF.pdf
Stable narrow band laser diode module with a wavelength tuning possibility in 0.5-1 nm range. The laser is packaged in Butterfly package with monitor photodiode and thermo-electric cooler (TEC). Module is pigtailed with 0.5-0.9 m of single mode or polarization maintaining (optional) fiber and connectorized by FC/APC connector.

Optical and electrical characteristics:
Parameter Symbol Test condition Min. Typ. Max. Unit
Optical Power Pf CW 5 mW
Treshold Current Ith 30 40 70 мА
Forward Current If Pf 100 150 mA
Forward Voltage Vf Pf 2.5 V

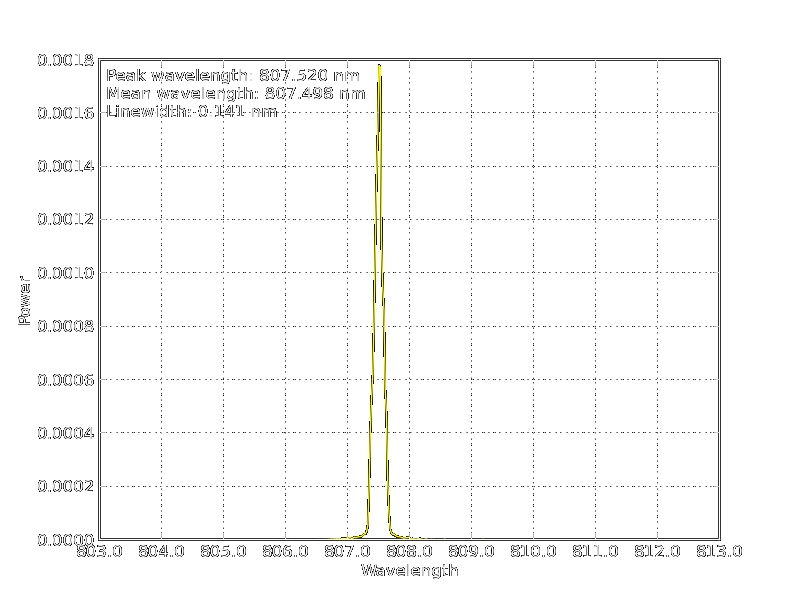

Center Wavelength λc Pf 807 808 809 nm
PZT Tuning Range Δfp 0.5 nm
Spectral Width Δλc Pf 1 MHz
PZT Tuning Voltage Vp -10 150 V
Side Mode Suppression Ratio SMSR 30 dB
Single-Frequency Continuous Tuning Range Δf 1 GHz
Current Tuning Δλ/ΔI 0.001 nm/mA
Temperature Tuning Δλ/ΔT 0.08 nm/°C
Monitor Current Im Pf 20 500 µA
PD Dark Current Id Vrd=5V 0.1 µA
TEC Current It It 1.4 A
TEC Voltage Vt TC=70°C 2.7 V
Thermal Resistance R0 T=25°С, B=3900±100K 9.5 10 10.5 kΩ
Extinction Ratio (PM fiber) Xp Pf 20 dB

Packaging:
Butterfly TLD:
№ Parameter № Parameter
1 Cooler anode + 8 PZT -
2 Thermistor 9 NC
3 PD anode - 10 LD anode +
4 PD cathode + 11 LD cathode -
5 Thermistor 12 NC
6 NC 13 Case
7 PZT + 14 Cooler cathode -
