Datasheet

TLD-1064-14BF
Download Datasheet:
TLD-1064-14BF.pdf
Stable narrow band laser diode module with a wavelength tuning possibility in 0.5-1 nm range. The laser is packaged in Butterfly package with monitor photodiode and thermo-electric cooler (TEC). Module is pigtailed with 0.5-0.9 m of single mode or polarization maintaining (optional) fiber and connectorized by FC/APC connector.

Optical and electrical characteristics:
Parameter Symbol Test condition Min. Typ. Max. Unit
Optical Power Pf CW 30 mW
Treshold Current Ith 15 20 30 мА
Forward Current If Pf 150 200 mA
Forward Voltage Vf Pf 2.5 V

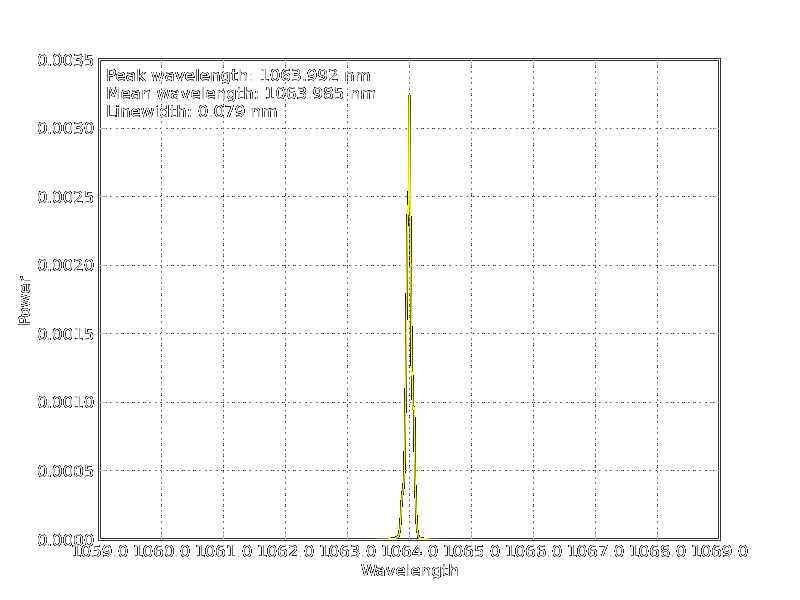

Center Wavelength λc Pf 1063 1064 1065 nm
PZT Tuning Range Δfp 0.5 nm
Spectral Width Δλc Pf 1 MHz
PZT Tuning Voltage Vp -10 150 V
Side Mode Suppression Ratio SMSR 30 dB
Single-Frequency Continuous Tuning Range Δf 1 GHz
Current Tuning Δλ/ΔI 0.001 nm/mA
Temperature Tuning Δλ/ΔT 0.08 nm/°C
Monitor Current Im Pf 20 500 µA
PD Dark Current Id Vrd=5V 0.1 µA
TEC Current It It 1.4 A
TEC Voltage Vt TC=70°C 2.7 V
Thermal Resistance R0 T=25°С, B=3900±100K 9.5 10 10.5 kΩ
Extinction Ratio (PM fiber) Xp Pf 20 dB

Packaging:
Butterfly TLD:
№ Parameter № Parameter
1 Cooler anode + 8 PZT -
2 Thermistor 9 NC
3 PD anode - 10 LD anode +
4 PD cathode + 11 LD cathode -
5 Thermistor 12 NC
6 NC 13 Case
7 PZT + 14 Cooler cathode -
