Datasheet

SOA-1060-14BF
Download Datasheet:
SOA-1060-14BF.pdf
Single-pass, traveling-wave semiconductor optical amplifier. The SOA consists of a highly efficient Multiple Quantum Well(MQW) layer structure. The laser is packaged in Butterfly package with monitor photodiode and thermo-electric cooler (TEC). Module is pigtailed with 0.5-0.9 m of single mode or polarization maintaining (optional) fiber and connectorized by FC/APC connector.

Optical and electrical characteristics:
Parameter Symbol Test condition Min. Typ. Max. Unit
Optical Power Pf CW 30 mW
Forward Current If Pf 300 400 mA
Forward Voltage Vf Pf 2.5 V

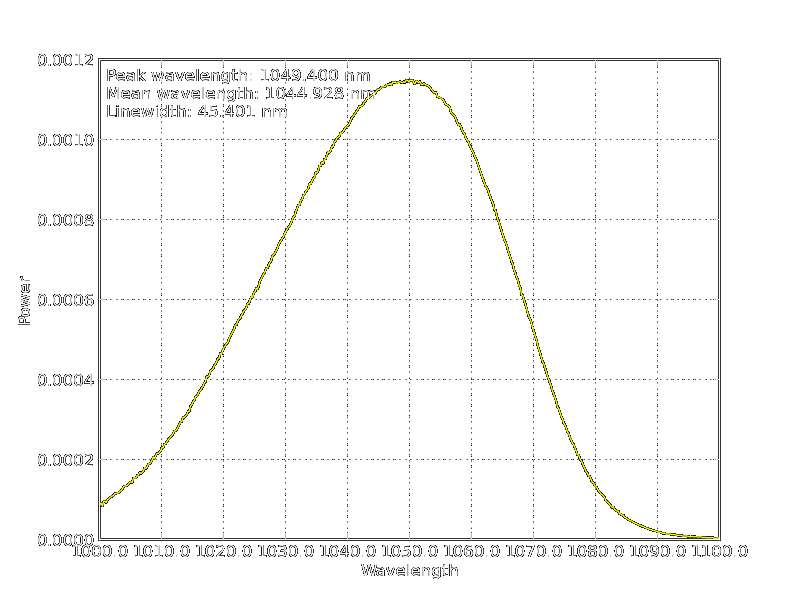

Center Wavelength λc Pf 1040 1050 1060 nm
Spectral Width Δλc Pf 30 40 nm
Small Signal Gain G CW, If 20 25 dB
Saturation Output Power Pd CW, If 13 dBm
Polarization Dependent Gain PDG CW, If 10 dB
Gain Ripple δG CW, If 1 dB
Noise Figure NF CW, If 8 dB
TEC Current It It 1.4 A
TEC Voltage Vt TC=70°C 2.7 V
Thermal Resistance R0 T=25°С, B=3900±100K 9.5 10 10.5 kΩ
Extinction Ratio (PM fiber) Xp Pf 18 dB

Packaging:
Butterfly SOA:
№ Parameter № Parameter
1 Cooler anode + 8 NC
2 Thermistor 9 NC
3 NC 10 LD anode +
4 NC 11 LD cathode -
5 Thermistor 12 NC
6 NC 13 Case
7 NC 14 Cooler cathode -
