Datasheet
Single mode Fabry-Perot laser diode module designed for optical measurement and communication.

Optical and electrical characteristics:
Parameter Symbol Test condition Min. Typ. Max. Unit
Optical Power Pf CW 50 mW
Pulsed Optical Power Pfp Pulse, τ=10µs, D=1% 150 mW
Treshold Current Ith 30 60 мА
Forward Current If Pf 300 350 mA
Pulsed Forward Current Ifp Pfp, τ=10µs, D=1% 500 mA
Forward Voltage Vf Pf 2.5 V

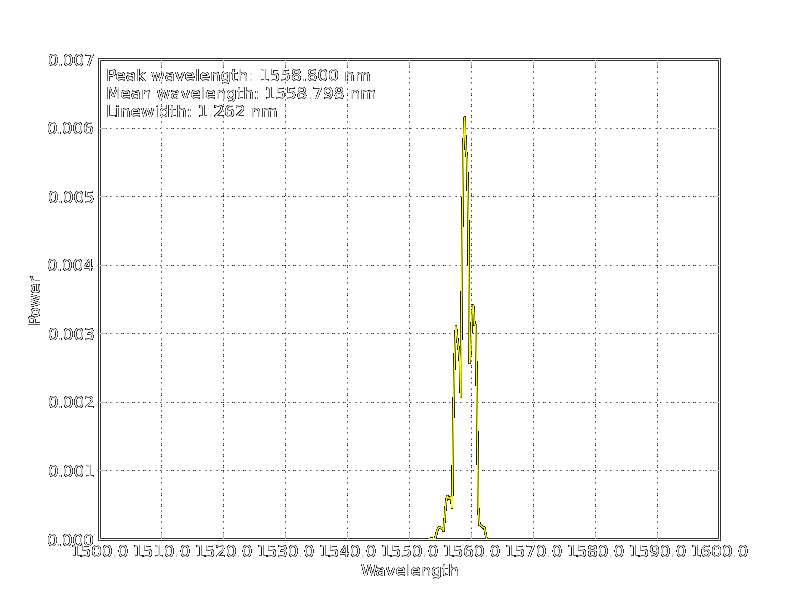

Center Wavelength λc Pf 1540 1550 1560 nm
Spectral Width Δλc Pf 1 3 nm
Monitor Current Im Pf 20 500 µA
PD Dark Current Id Vrd=5V 0.1 µA

Packaging:
9mmTO:
Parameter
1 LD anode +
2 LD -, PD -, case
3 PD cathode +
